Ohaus Compact Bench Scales are available from Central Carolina Scale, Inc.

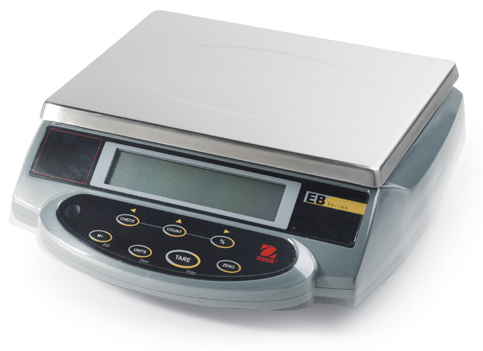

The Ohaus EB Series Scale is a multi-function weighing scale designed as a cost effective solution for industrial applications. Ideal for light to medium industrial applications. Standard features include fast displayed results, integrated handholds, battery operation, multiple weigh modes, the Ohaus EB Series offers versatility, portability and dependability in one affordable package.

Built in handles in the housing allow easy transport of the EB Scale Portable Bench Scale

Specifications	EB3	EB6	EB15	EB30
Capacity x Readability	6.6 lb x 0.0002 lb 105 oz x 0.005 oz 3 kg x 0.0001 kg 3,000 g x 0.1 g	13 lb x 0.0005 lb 208 oz x 0.01 oz 6 kg x 0.0002 kg 6,000 g x 0.2 g	33 lb x 0.001 lb 528 oz x 0.02 oz 15 kg x 0.0005 kg 15,000 g x 0.5 g	66 lb x 0.002 lb 1056 oz x 0.05 oz 30 kg x 0.001 kg 30,000 g x 1 g
Maximum Displayed Resolution	1:30,000	1:30,000	1:30,000	1:30,000
Construction	Stainless steel pan, plastic housing
Weighing Units	lb, oz, kg, g
Application Modes	Weighing, Counting, Checkweighing, Percent, Accumulation
Repeatability (std. deviation)	1d
Linearity	± 1d
Display	1-window backlit LCD display, 1-inch / 25.4 mm high, 6-digit, 7-segment
Display Indicators	Stability, Center of Zero, Gross, Tare, Battery Status, Hi-Ok-Lo, Units
Hi-Lo Check Indicators	Display with alert beeper

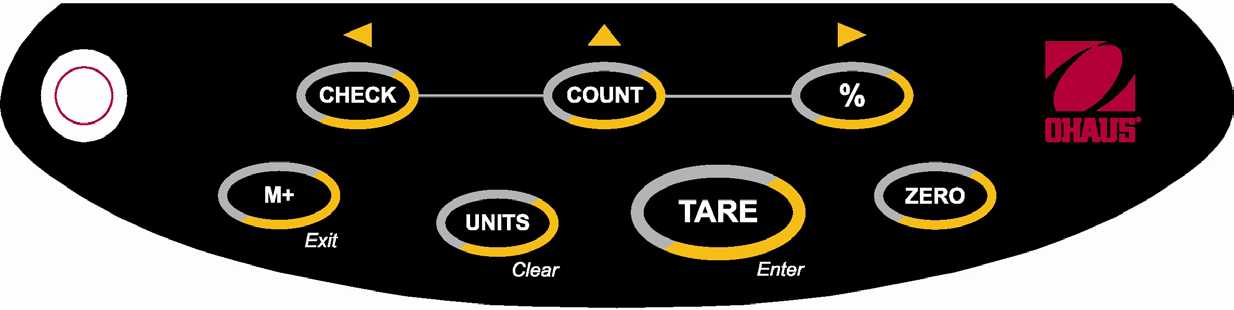

Keyboard	7 raised tactile membrane switches: M+, Units, Zero, Tare, Check, Count, %
Zero Range	4% of full scale capacity
Tare Range	Full capacity by subtraction (except EB15, up to 10kg only)
Stabilization Time	≤ 2 seconds
Operating Temperature	32°F to 104°F / 0° to 40°C
Humidity Range	≤ 90% relative humidity, non-condensing
Power	AC Adapter 12V DC / 800mA Internal rechargeable sealed lead acid battery
Battery Life	80 hours continuous use with 12 hour recharge time
Calibration	External with kg/g mass, factory calibration recovery
Shipping Protection	Shipping screw to avoid damage to sensitive components
Safe Overload Capacity	120% of capacity
Pan Size (W x L)	11.6 x 8.9in / 294 x 226mm
Scale Dimensions (W x L x H)	12.8 x 13 x 4.5in / 325 x 330.5 x 114mm
Shipping Dimensions	17.3 x 14.2 x 6.3in / 440 x 360 x 160mm
Net Weight	9.3lb / 4.2kg
Shipping Weight	12lb
Other Features	Auto-zero tracking, filtering level
